2019 Dry Truck Bodies

Our dry truck bodies lower delivery costs, perform predictably, and withstand even heavy use and abuse with minimal maintenance. Using our proven DuraPlate® technology, we designed dry freight truck bodies that are lighter and stronger, have more cube space, and outlast the chassis.

Categories: ,

Available Configurations

DOORS

Roll-Up

Swing

Fleet-Proven Features

  • Built with DuraPlate® advanced composite technology for four times more strength, improved durability, and pleasing aesthetics.
  • Bonded panels eliminate posts, snag and leak points while enhancing aesthetics.
  • Framed with wider steel crossmembers, beams, and corrosion barriers for greater durability and strength.
  • Constructed with a forklift-capable, 16,000 lb. floor rating standard.
  • Available with MSC Technology flooring to reduce weight by up to 500 lbs., enable higher load capacity and deliver greater fuel efficiency.

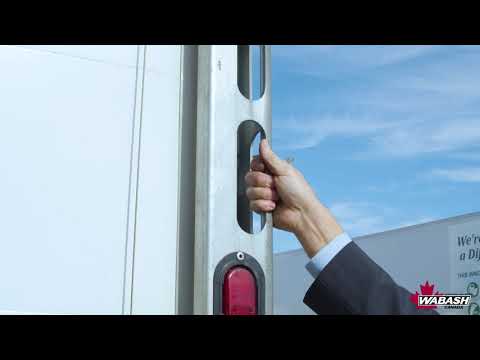

  • Equipped with damage and leak-resistant corners, galvanized steel rear frame, pop rivet fastening, and recessed rear grab handles for even longer product life.
  • Constructed with wider door openings and an optional DOT and Transport Canada-approved liftgate to make loading and unloading easier and more efficient.

Long-Lasting Performance

  • Lower total cost of ownership.
  • Longer truck body life.
  • Less downtime.
  • More cube space.
  • Damage and corrosion resistant.
  • Toughest truck body on the market.
  • Highest lease residual in the industry.
  • Longest, most comprehensive warranty in the industry.

General

  • Lengths: Up to 33’
  • Heights: Up to 108”
  • Widths: 96”–102-3/8”

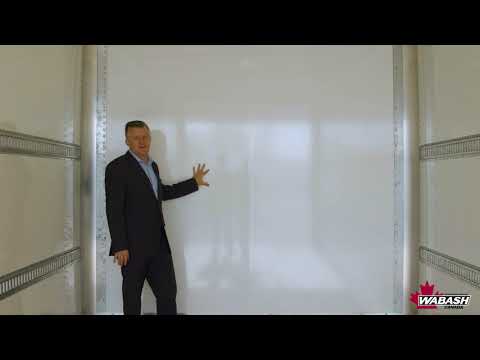

Nose

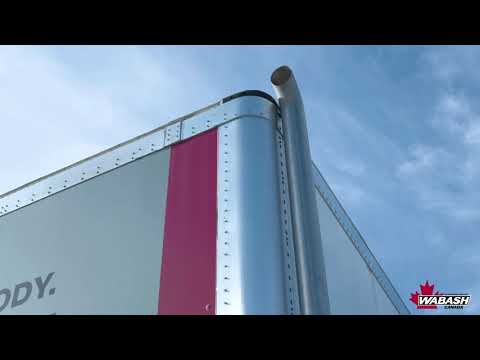

  • One-piece extruded aluminum header with formed radius

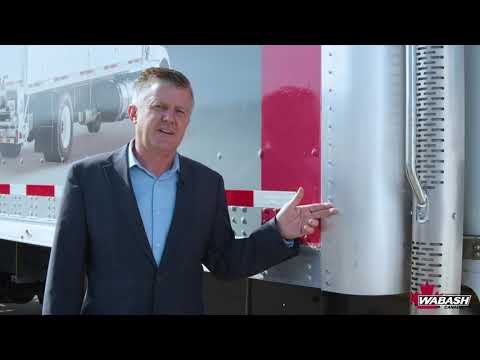

  • 5” radius corner post constructed with .125” heavy-duty extruded aluminum
  • Bonded DuraPlate® 6mm composite panels
  • Galvanized inner corner liners
  • 12” tall, 10-gauge steel nose scuff; 24” tall optional

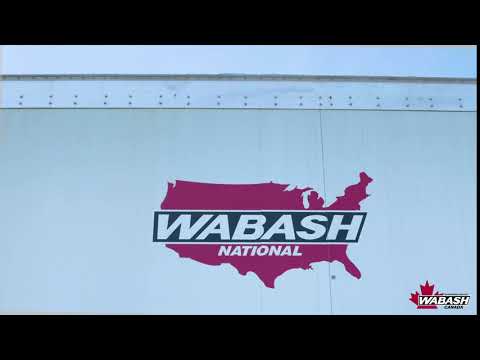

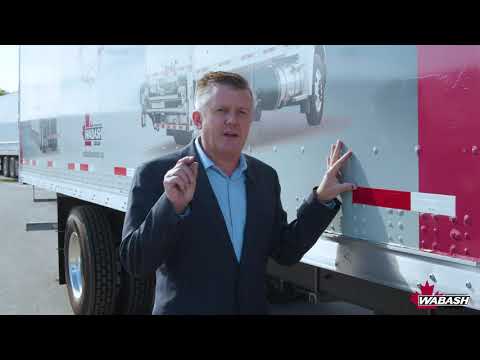

Sidewalls

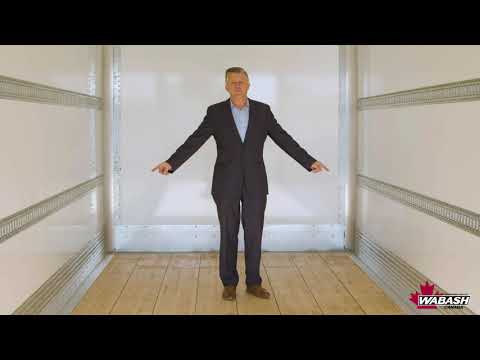

  • Bonded DuraPlate 6mm composite panels

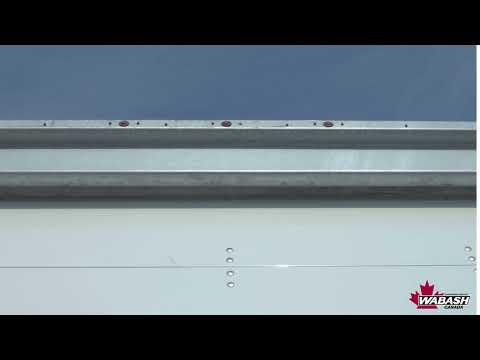

  • Flat seam design allows top rail connection to the outside panel, for an overlapped top rail design

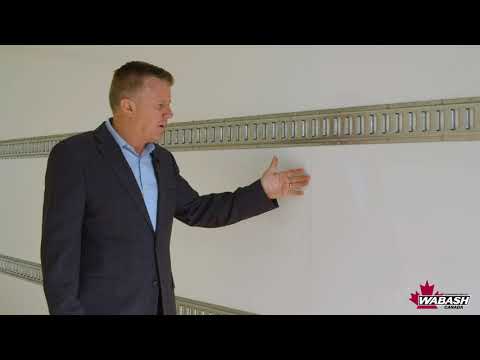

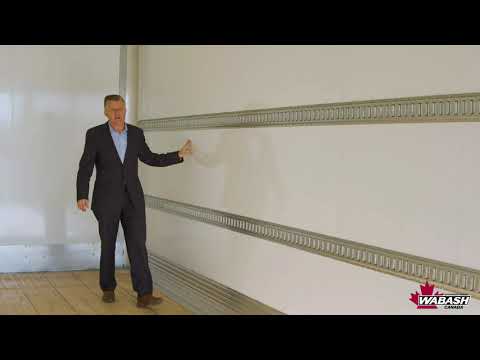

  • Bonded 12-gauge logistic seams on 24” centers rated at 1,880–lb working load; 16” centers optional
  • Integral A-slots punched on 4-1/2” centers, optional
  • DuraPlate composite panels made in the U.S.A., backed with limited 10-year warranty*

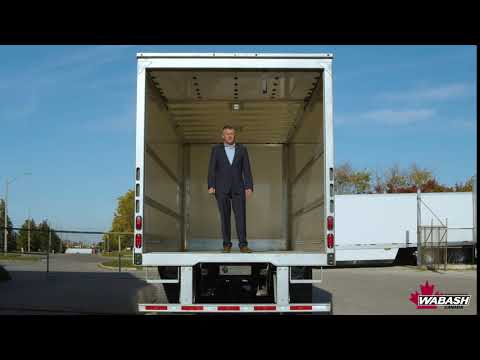

Floor System

  • 16,000-lb fork truck rated floor; TTMA rated

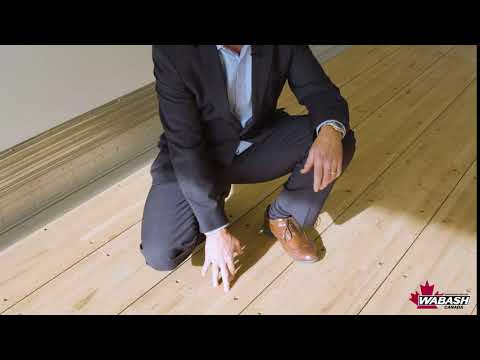

  • Full, 1-1/4” thick laminated oak floorboards installed with two screws per board, per crossmember
  • 2” steel angle threshold

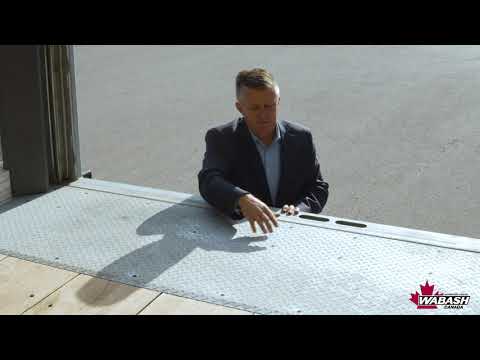

  • 24” galvanized woodless rear entry threshold package, optional

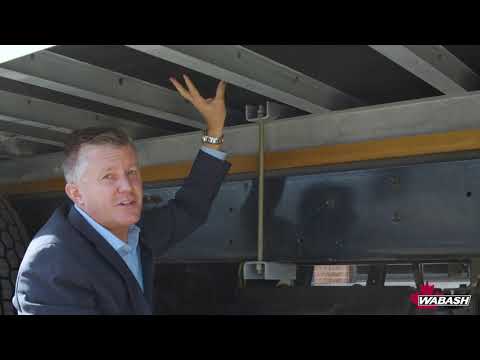

  • 3” steel crossmembers on 12” centers in bay; 6” centers in rear 2’

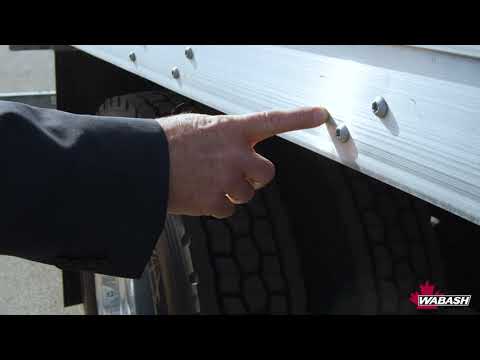

  • Steel base rail bolt connections

Roof System

  • .032 aluminum roof
  • 18-gauge galvanized steel anti-snag roof bows mounted on 24” centers

Rear Frame

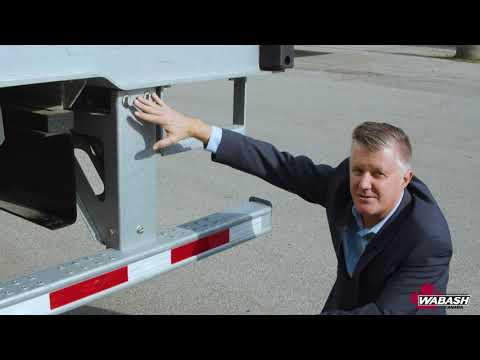

  • Bolt-on rear impact guard meets U.S. Department of Transportation and Transport Canada trailer requirements
  • Galvanized carbon steel
  • Heavy-duty baseplate in rear sill with post bar protection
  • Eyebrow and vertical light protection

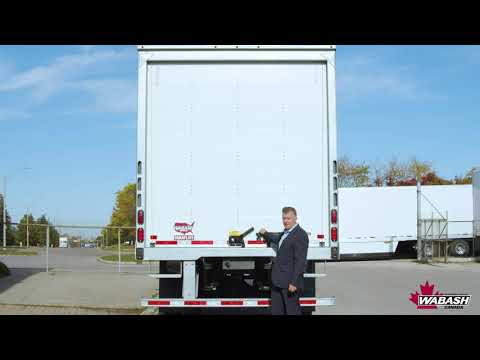

  • 7-1/2” rear header with integral gutter
  • 93” standard opening width, optional 97” opening available
  • Overhead DuraPlate composite door, includes maximum-security lock,rubber top and bottom seals with pull strap

Lights/Electrical

  • All LED lights
  • Sealed harness system

Options

  • Bonded D-rings rated at 400-lb working load
  • Bonded skylights and interior lighting
  • Captive beam and decking systems
  • Dock stabilization kit
  • Door track protectors
  • Floor packages available in laminated oak, aluminum, traditional composite, combination kits and molded structural composite
  • Galvanized options available

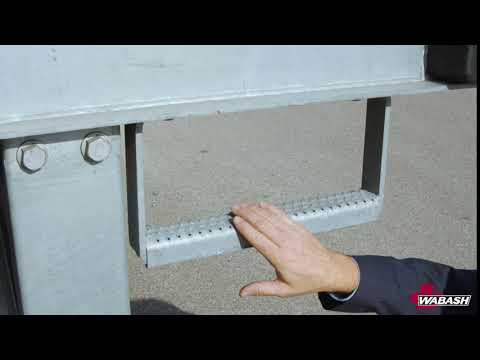

  • Lift gates, walk ramps, steps and combination solutions
  • Stainless steel and lightweight options available
  • Multiple bonded and riveted logistics available in A-track and E-track configurations
  • Multiple configurations of grab handles
  • Multiple side door configurations available
  • Multiple swing and overhead doors available
  • MaxClearance™ overhead door system
  • Multiple cargo securement options available
  • Roof packages available in translucent material and
  • DuraPlate composite

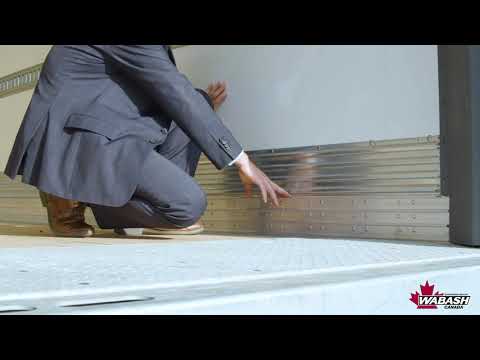

  • Scuff liners available in wood, steel, aluminum and plastic
